Model NO: MI7014
Material: PET, paper etc

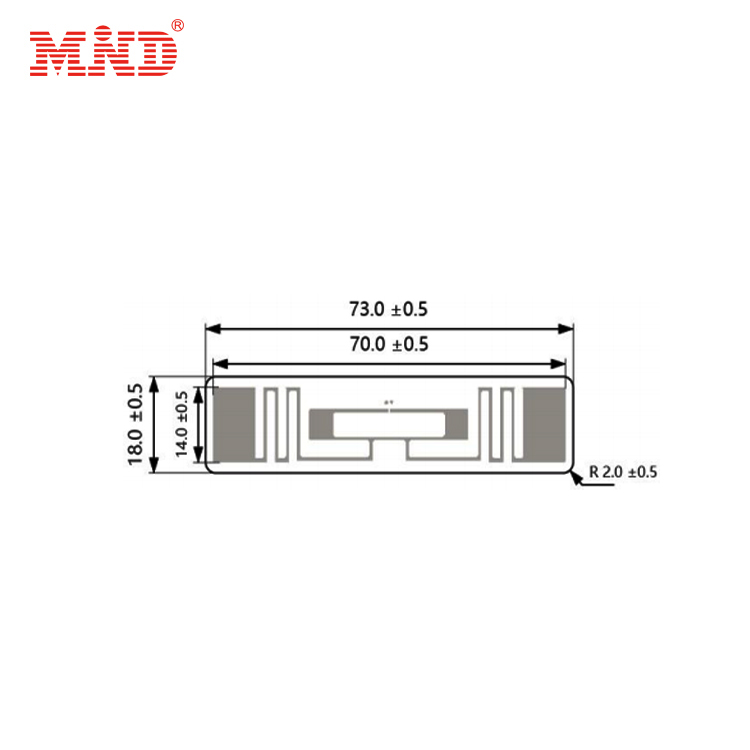

Antenna size: 70*14mm
Produt size: 73x18mm
RFID chip: UHF

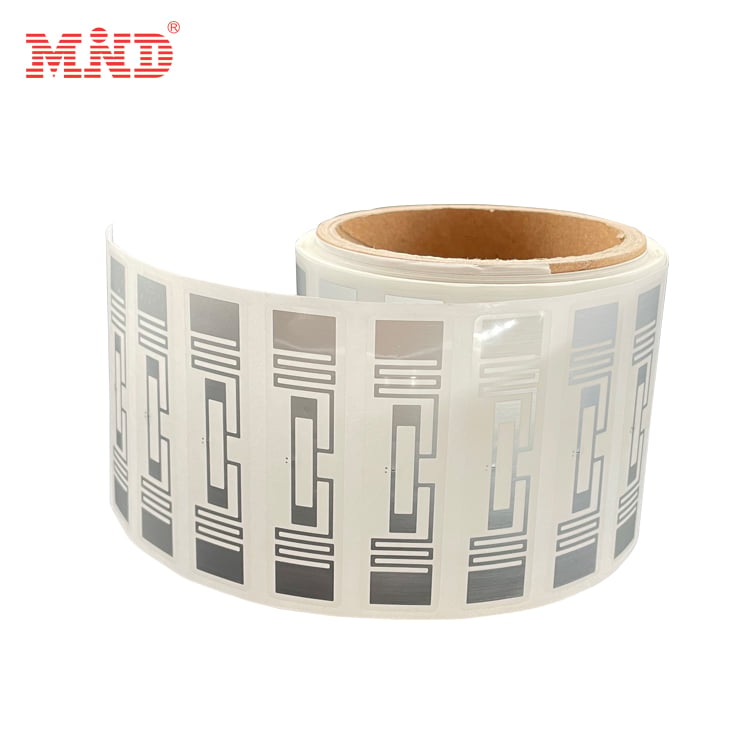

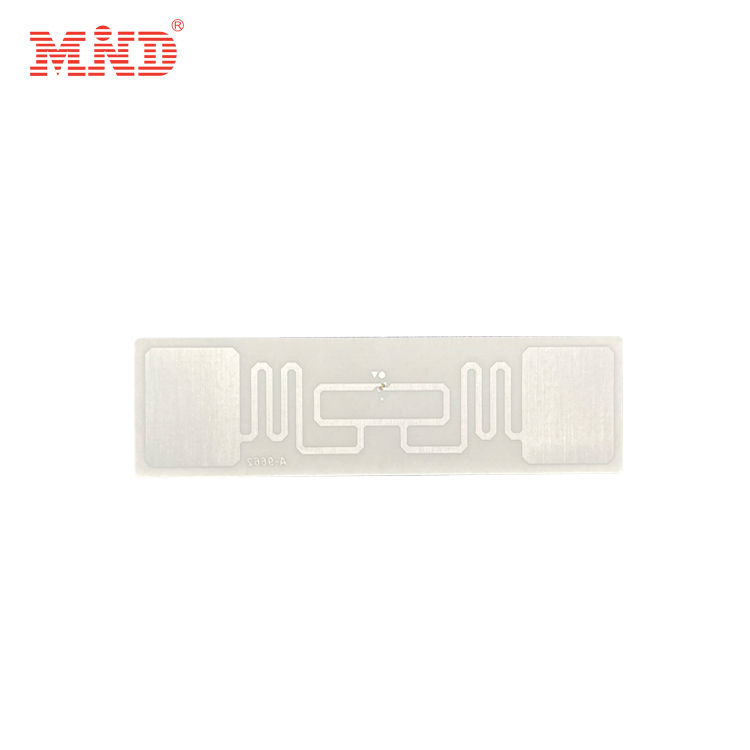

RFID Inlay is a special term for the RFID industry, which refers to a pre-laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID labels can be made. The inlay can be understood as semi-finished products without the encapsulation of RFID tags. RFID inlays can be divided into dry RFID inlay and wet RFID inlay. MI7014 UHF RFID inlay antenna standard size 70x14mm designed by Mind, antenna made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes. Mainly used for application industry areas: Asset warehousing and logistics source positioning tracking, the retail industry as clothing hanging, various fast consumer goods and transportation industry vehicle management, etc.
| Product Name | RFID Inlays |
| Features | Stable performance, environmental protection, lighter in weight, and offer antenna design services. |
| Size | Antenna size: 70*14mm Produt size: 73x18mm |
| Material | PET, paper etc |
| Color | customized |
| Chip Type | UCODE® 9 UCODE® is registered trademarks of NXP B.V. and are used under license. |
| Protocol | ISO1800-6C |
| Printing | Programming, Numbering, Printing, etc. |

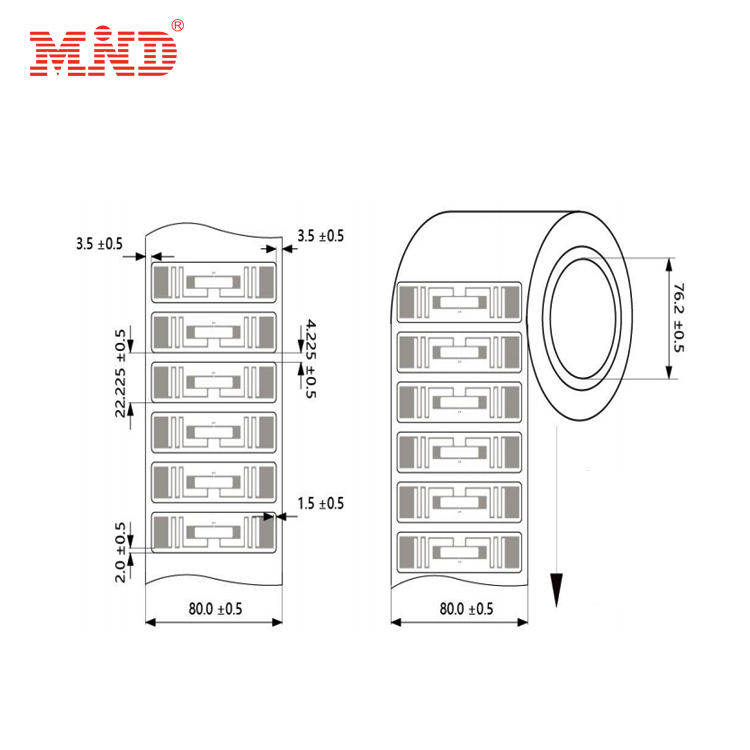

| Tag Form Factor | Dry Inlay/wet inlay/White wet inlay(label) |
| Applications | Secure Admission Control Cashless Payment Membership loyalty programs Event Access Social Media Environment Games & Toys Location Electronics Trade Shows Events Call request Business Cards & etc. |
